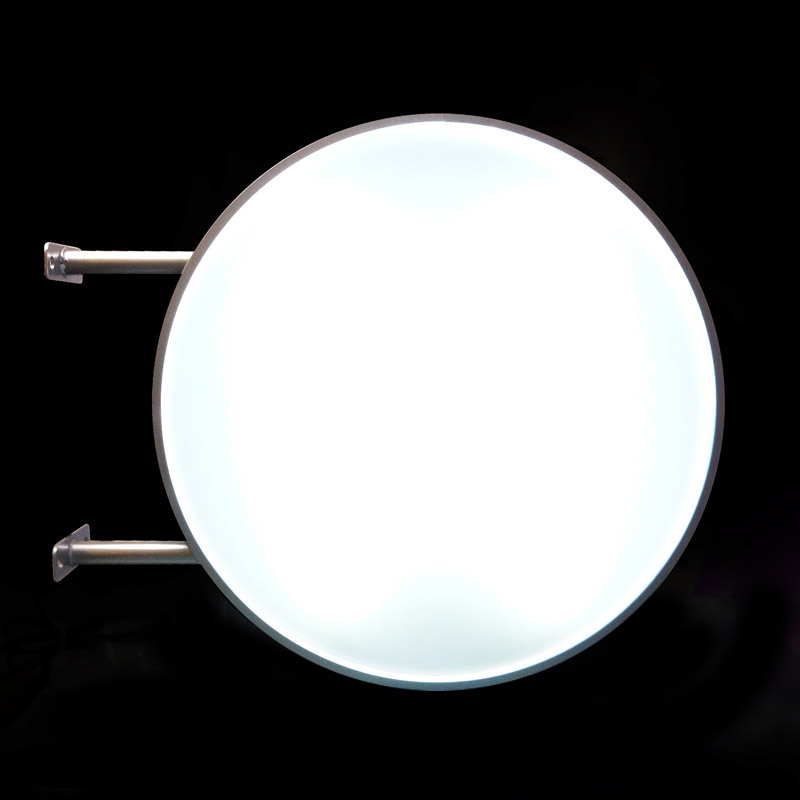

80cm Round Projecting Light Box LED


80cm Round Projecting Light Box LED

£148.00 ( £177.60 inc. VAT )

Circular Projecting Lightbox

Circular Projecting Lightbox D80 LED

  • Double sided
  • Waterproof and durable
  • Complete with brackets ready for installation

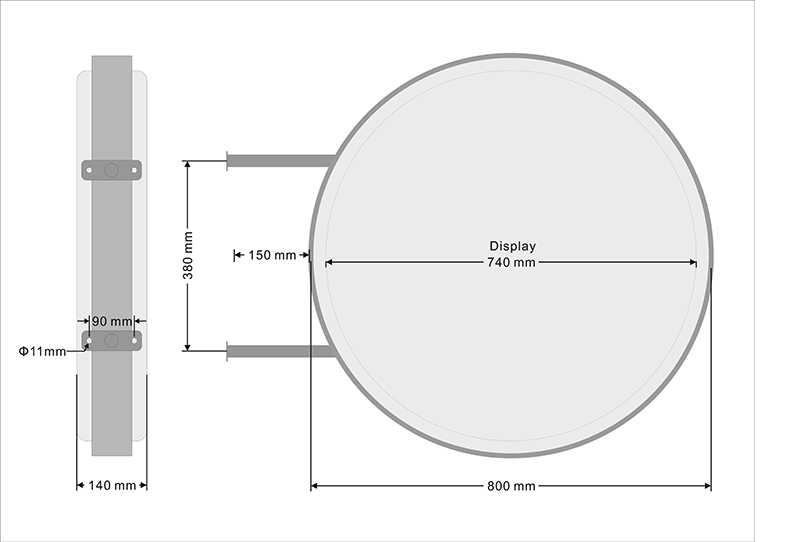

Specs:

  • Size: 80 cm diameter
  • Thickness: 15 cm
  • Display Area: 74 cm
  • Bracket Length: 17 cm
  • Weight: 5.2 kg

Technical Information:

  • Power:  66w (36w 2pcs)
  • Input Voltage:  AC240V  50/60HZ
  • PF: 85%
  • Working Temperature: (-25°+45°)
  • LED type: 2835/0.2w
  • Light source: LED
  • Color Temperature: 10000±500
  • Color Rendering Index: ˃75
  • Qty/ leds:  330PCS
  • Lumen/W:  90-100LM
  • Beam angle: 120
  • Material:
    • Frame & Brackets: Aluminium (silver colour)
    • Panels: Vacum formed acrylic 3mm thick (opal colour)
  • Power input: AC 220-240V 3 pin UK plug for testing purpose only, must be wired to mains
  • Light source Lifetime: 50,000+ hours = 5+ years of constant use.

Additional Information

Weight 6 kg
Dimensions 97 × 80 × 15 cm
